Complimentary professional design

Let’s plan the whole room together.

Send your measurements or floor plan. We’ll use them to begin a practical cabinet layout and coordinated project quote.

A clear three-step process

From room measurements to a complete plan.

Photos, sketches and inspiration images are helpful. A simple hand-drawn floor plan is enough to get started when it includes wall lengths, ceiling height, doors, windows and appliance locations.

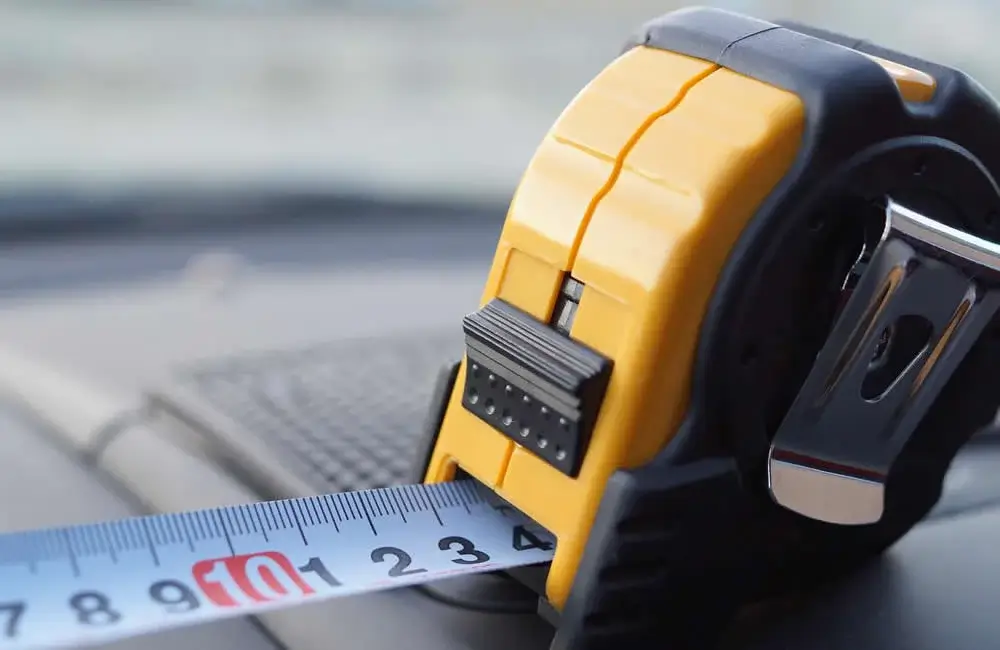

Measure your space

Record walls, openings, ceiling height, plumbing and appliances.

Share your plan

Upload a PDF or clear image and tell us how to reach you.

Review the design

Work with a designer toward a layout, product list and quote.

Before you submit

How to draw your floor plan.

You do not need professional drafting software. A neat hand-drawn sketch is perfect—as long as every measurement and fixed feature is clearly labeled.

Example kitchen floor plan showing wall segments, doors, windows, sink and range centerlines — A useful plan shows the total wall lengths *and* each smaller section between corners, doors, windows and appliances.

Draw the room from above

Sketch the shape of the room and mark each wall. Start in one corner and work clockwise so no section is missed. Include adjoining walls when they affect an island, peninsula or walkway.

Measure every wall and opening

Record dimensions in inches. Show the full wall length, then the distance from the corner to each door or window, the opening width, and the remaining distance to the next corner.

Add vertical measurements

Provide the finished-floor-to-ceiling height. For windows, include floor to bottom of trim, window height and trim-to-trim width. Mark soffits, beams, sloped ceilings and anything that limits cabinet height.

Locate utilities and appliances

Mark the centerline of the sink, plumbing, range or cooktop, gas line, hood vent and other fixed connections. Include appliance widths and, when available, manufacturer and model numbers.

Measure to finished surfaces

Measure from wall to wall—not from the existing cabinets. Clearly identify whether dimensions include door and window trim.

Include room photographs

Photograph every wall, doorway and nearby room connection. If you have several files, combine the sketch and photos into one PDF before uploading.

Do not estimate critical sizes

Double-check totals and make sure the smaller wall sections add up. Final field measurements must be verified before cabinets are ordered.

Your upload should include

Wall lengths · ceiling height · doors · windows · utilities · appliances

My plan is ready

Tell us about your room

Start your complimentary design.

Your floor plan is stored outside the public website and used only to begin your cabinetry project.

Include all measurements listed in the guide above
PDF, JPG, PNG or WebP
Maximum file size: 15 MB
Phone number is optional
